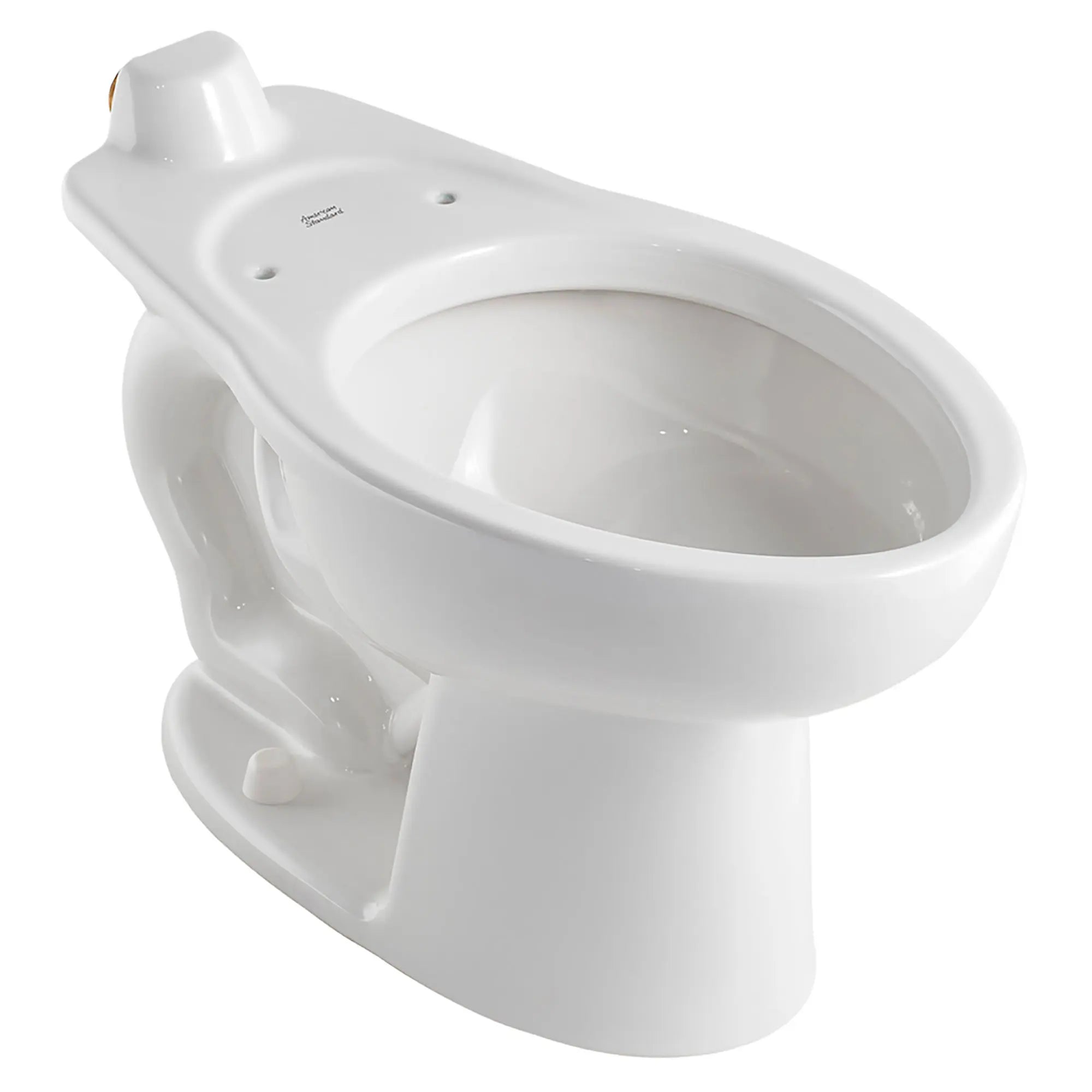

Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Back Spud Elongated Bowl

Model: 3249001.020

Shipping

Finish: White

~~List price $217.00~~

This item is not available for sale on our website

View full details

Floor-mount, elongated flushometer bowl, less seat
High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
16-1/2" (419 mm) Chair Height for accessible applications
Static weight load of 2,500 lbs (1,134 kg)
2-1/8" (54 mm) fully-glazed trapway
10" (254 mm) or 12" (305 mm) rough-in
Condensation channel
Powerful direct-fed siphon jet action
1-1/2" (38 mm) inlet spud

The Madera Back Spud Elongated toilet bowl is designed to operate between 1.1 gpf – 1.6 gpf when paired with a high efficiency flush valve to provide water savings. With a 16-1/2 inch height, this floor mounted toilet is designed for ADA accessible installations. The floor mounted toilet bowl has a 2-1/8 inch trapway and siphon action flushing technology to reduce clogs.

Resource

Spec Sheet Installation Guide

Style Specifications

Item Shape	Bowl Shape: Elongated
Toilet Type	Floor_Standing_Toilet_Bowl

Technical Specifications

Flush Technology	Flushometer
Flushing Type	Not Applicable
GPF Maximum	1.6 gpf
GPF Minimum	1.1 gpf
Toilet Trapway Diameter	2-1/8 in
Toilet Type	Floor_Standing_Toilet_Bowl
Bidet Spray Type	No
Everclean	No
MAP Performance Rating	1000
