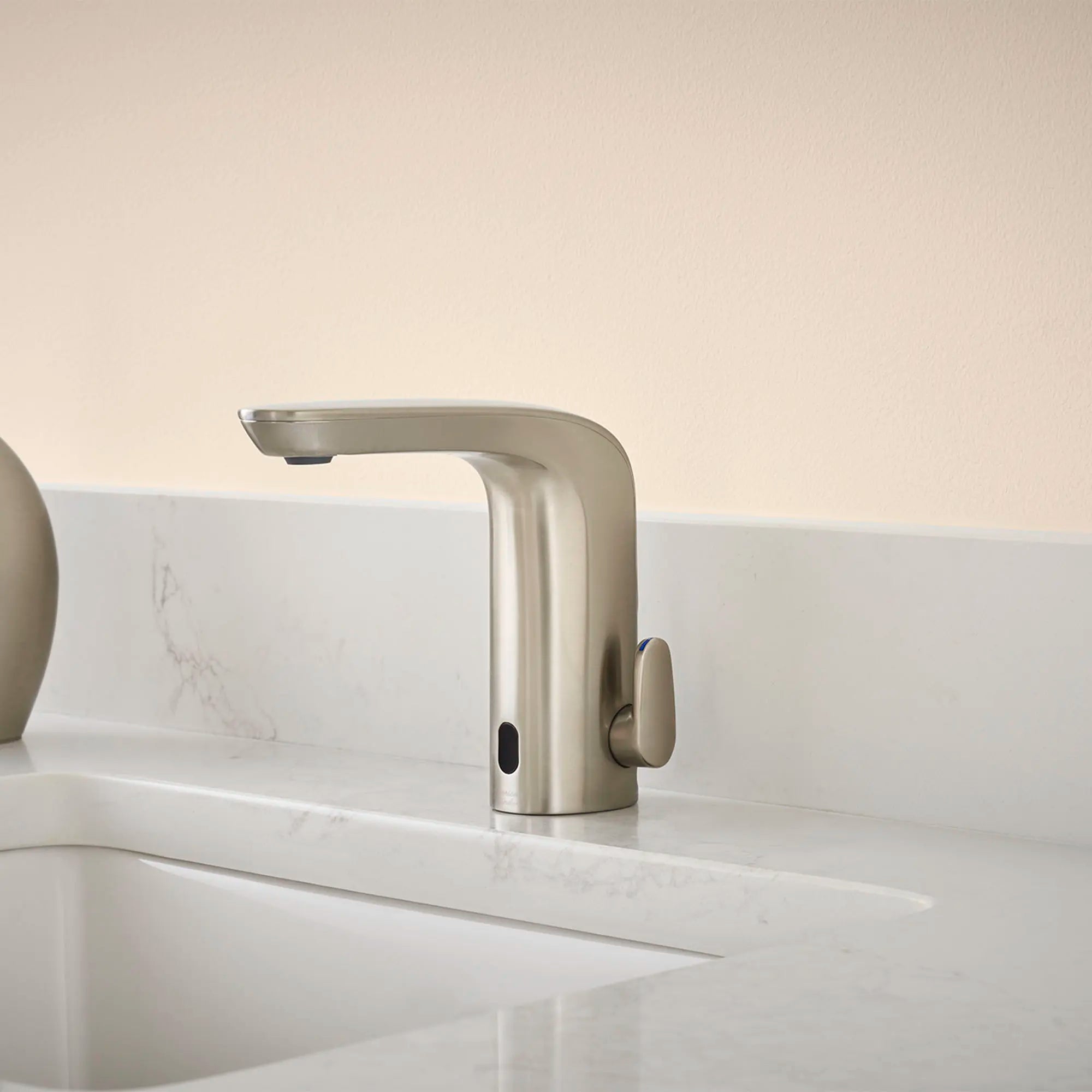

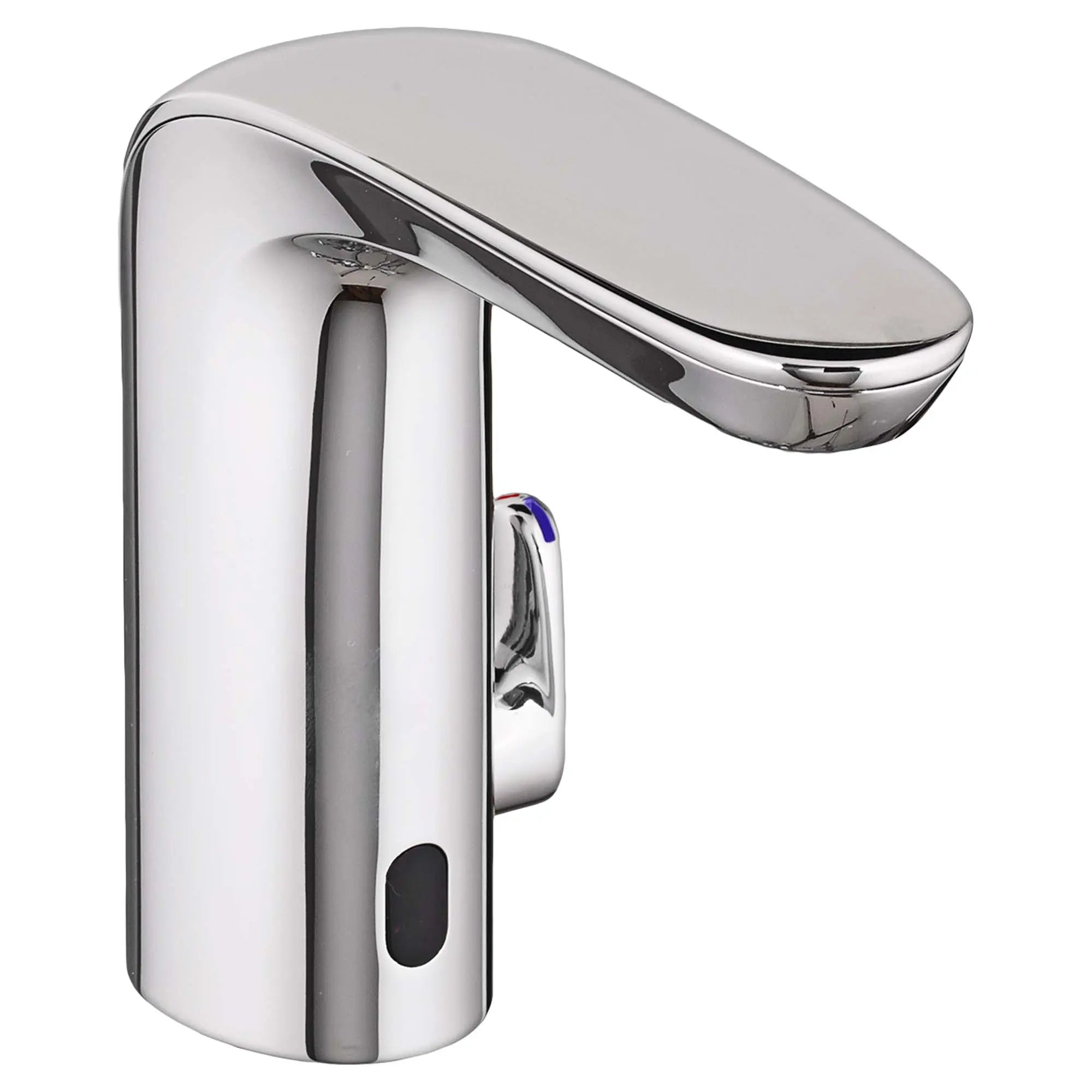

NextGen Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm

NextGen Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm

Model: 775B315.002

  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
Shipping
Finish: CHROME
Regular price $567.00
Sale price $567.00 Regular price

List price

This item is not available for sale on our website
View full details
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating laminar flow outlet
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
The exclusive American Standard SmarTherm™ Safety Shut-Off is an innovative technology that integrates a thermostatic hot water temperature limiter into the sensor faucet. SmarTherm™ is ASSE 1070 certified and automatically protects user from scalding in case of hot water surge or cold water interruption. It eliminates the need for a separate TMV to achieve ASSE 1070 protection. This NextGen Selectronic Commercial Faucet from American Standard also includes an above-deck mixing handle, allowing the user to adjust the water temperature to their liking. This faucet has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box. POWER KITS MUST BE PURCHASED SEPARATELY.
Resources
Style Specifications
Features Touchless, Touchless, Scald Guard, Ceramic Disc Valves, Low Flow, Water Efficient
Fitting Features Touchless;Scald Guard;Ceramic Disc Valves;Low Flow
Technical Specifications
Fitting Connection Size 3/8 in
Fitting Handle Type Electronic
Fitting Material Cast Metal
Fitting Max Deck Thickness 1-1/2 in
Fitting Swivel Degrees 0 °
Flow Rate GPF, - 1.5 GPM
Other Specs
Warranty 5 Year Limited Warranty
Batteries Included Not Applicable
Batteries Required No
Battery Weight Not Applicable
