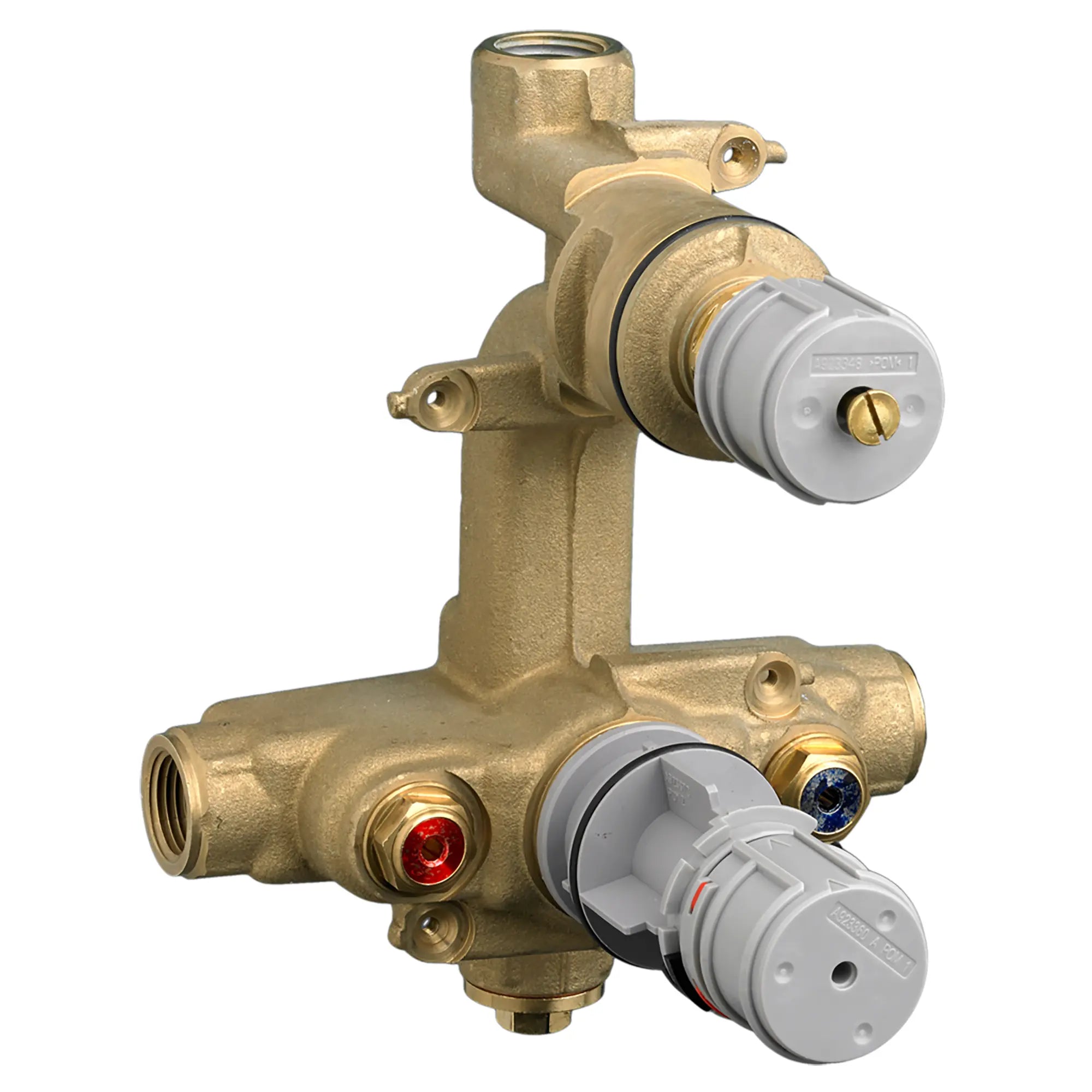

2-Handle Thermostatic Rough-In Valve With On/Off and Volume Control

Model: R520

Finish: No Finish

~~List price $381.00~~

This item is not available for sale on our website

View full details

Brass Casting: Highest quality faucet material for durability & long life.
Wax Thermostatic Unit: Permits shuttle valve to move between the hot and cold seats to maintain the pre-selected constant water temperature.
Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding. Maximum water temperature limit may be reduced to 104 or 109 degrees Fahrenheit.
Spring-Loaded Check Valves: When the hot and cold water enters the fitting, both supplies pass through the spring-loaded check valves to prevent cross flow of hot and cold water. Integrated stop valves ensure easy cleaning and servicing.

This two-handle thermostatic mixing valve allows you to select the water temperature and volume for your showerhead and body/side sprays. The lever handle controls the temperature and the cross handle is the on/off volume control. Once set, the temperature remains constant even if the water pressure changes, like when someone flushes a toilet.Brass Casting: Highest quality faucet material for durability & long life.Wax Thermostatic Unit: Permits shuttle valve to move between the hot and cold seats to maintain the pre-selected constant water temperature.Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding. Maximum water temperature limit may be reduced to 104 or 109 degrees Fahrenheit.

Resource

Spec Sheet Installation Guide
