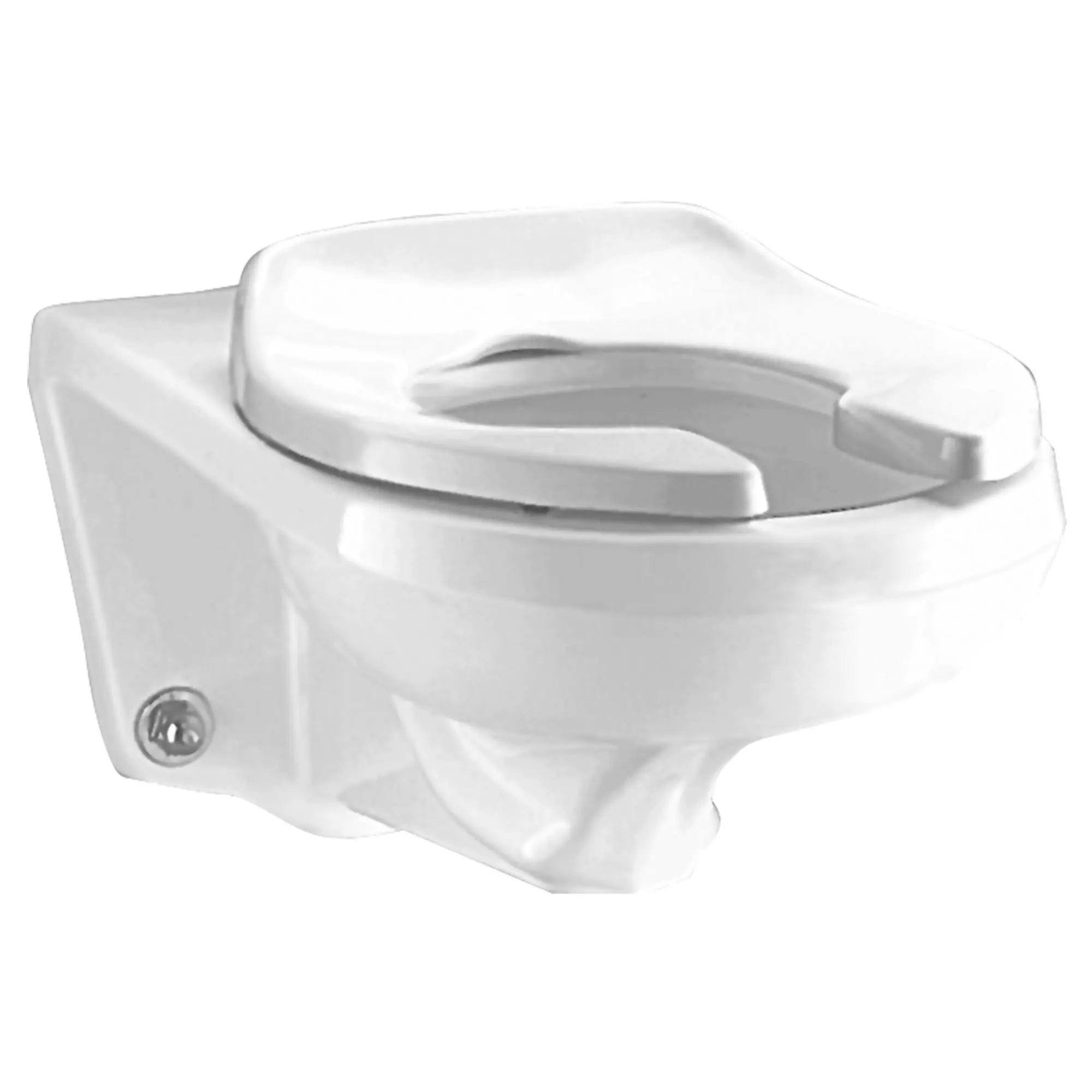

Afwall® ADA Retrofit 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Top Spud Elongated Wall-Hung EverClean® Bowl

Model: 2294011EC.020

Shipping

Finish: White

~~List price $545.00~~

This item is not available for sale on our website

View full details

Afwall® ADA replaces standard wall-hung 3.5 or 1.6 models and rough-ins at 16-1/8" (410 mm) rim height to meet ADA with no need to modify the existing carrier or through-wall supply – providing centerline of current outlet is 5-1/4" (133 mm) above finished floor
Wall-hung elongated flushometer bowl, less seat
High Efficiency Toilet (HET) operates in the range of 1.28 gpf – 1.6 gpf (4.8 Lpf – 6.0 Lpf)
Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
Condensation channel
Powerful direct-fed siphon jet flush action
2-1/8" (54 mm) fully-glazed trapway
1-1/2" (38 mm) inlet spud
Includes flush valve rough-in adapter kit

We've been producing some of the industries best commercial toilets for more than 137 years. Built to stand the test of time and handle years of high use, there is an American Standard commercial toilet that's right for any job. Afwall FloWise ADA bowl replaces standard wallhung 3.5 GPF or 1.6 GPF models and roughs-in at 410mm (16-1/8") rim height to meet ADA with no need to modify the existing carrier or through wall supply (providing centerline of current outlet is 133mm [5-1/4"] above finished floor).

Resource

Spec Sheet

Style Specifications

Item Shape	Bowl Shape: Elongated
Toilet Type	Floor_Standing_Toilet_Bowl

Technical Specifications

Flush Technology	Flushometer
Flushing Type	Not Applicable
GPF Maximum	1.6 gpf
GPF Minimum	1.28 gpf
Toilet Trapway Diameter	2-1/8 in
Toilet Type	Floor_Standing_Toilet_Bowl
Bidet Spray Type	Yes
Everclean	Yes
MAP Performance Rating	1000
