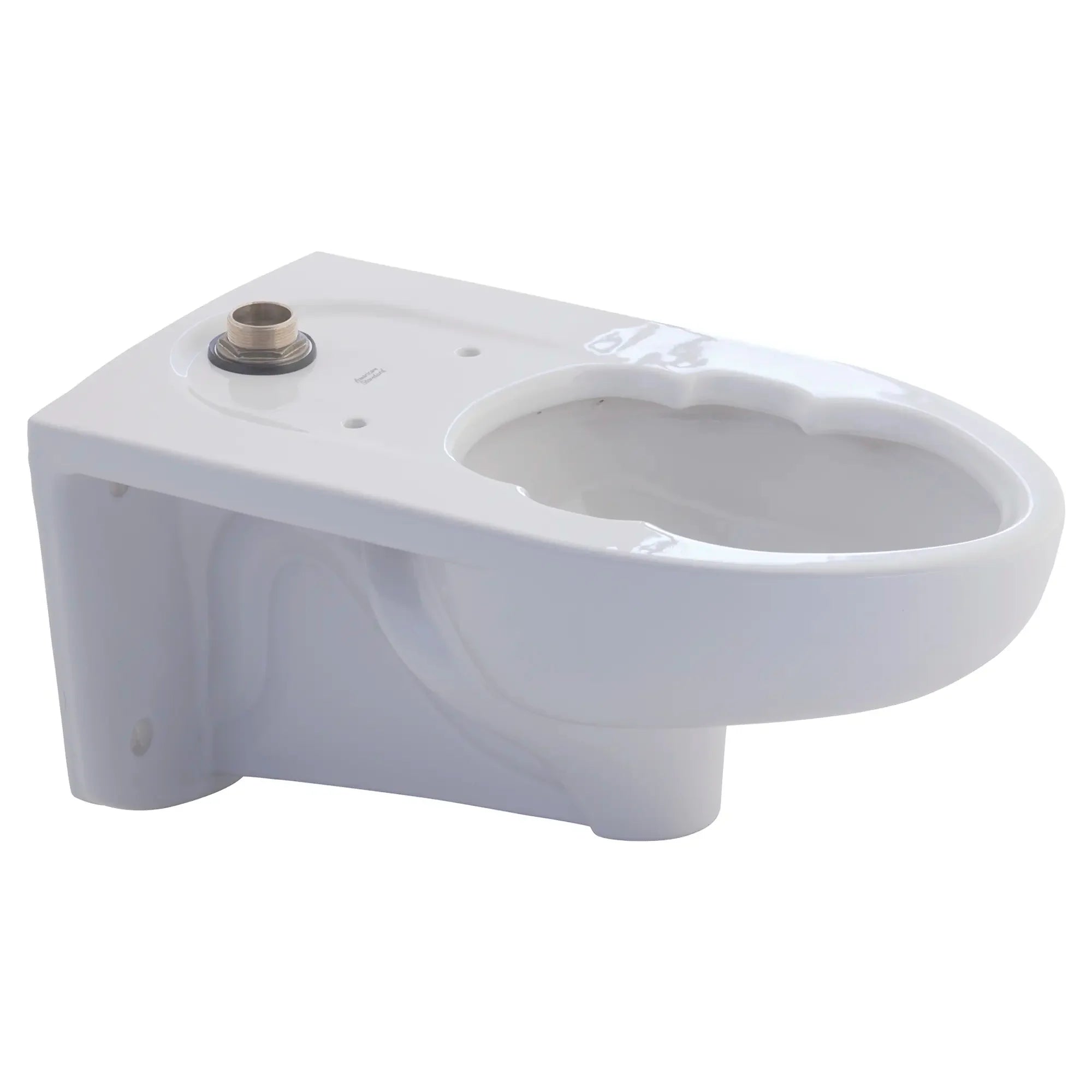

Afwall® Millennium® 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Top Spud Elongated Wall-Hung Bowl With BedPan Lugs

Model: 2633101.020

Shipping

Finish: WHITE

$197.00

~~List price~~

This item is not available for sale on our website

View full details

Wall-hung elongated flushometer bowl, less seat
High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
Conventional glaze
Direct-fed siphon jet flush action
2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
Static weight load of 1,000 lbs (453 kg). Not recommnded for bariatric use.
Concealed trapway design with condensation channel
1-1/2" (38 mm) inlet spud
With bedpan lugs

Introducing the new Afwall® Millennium wall-hung toilet line from American Standard. Our reliable and dependable wall-hung toilet is now even better and more powerful with a premier flushing performance at lower flush volume, increased static weight load capacity, and streamlined design.

Resources

Spec Sheet Installation Guide

Style Specifications

Item Shape	Bowl Shape: Elongated
Toilet Type	Floor_Standing_Toilet_Bowl

Technical Specifications

Flush Technology	Flushometer
Flushing Type	Not Applicable
GPF Maximum	1.6 gpf
GPF Minimum	1.1 gpf
Toilet Trapway Diameter	2-1/8 in
Toilet Type	Floor_Standing_Toilet_Bowl
Bidet Spray Type	No
Everclean	No
MAP Performance Rating	1000

Other Specs

Warranty	1 Year Limited Warranty
Batteries Included	Not Applicable
Batteries Required	No
Battery Weight	Not Applicable

Download Spec Sheets CAD Drawings 2D

Installation Guide
