Maybrook

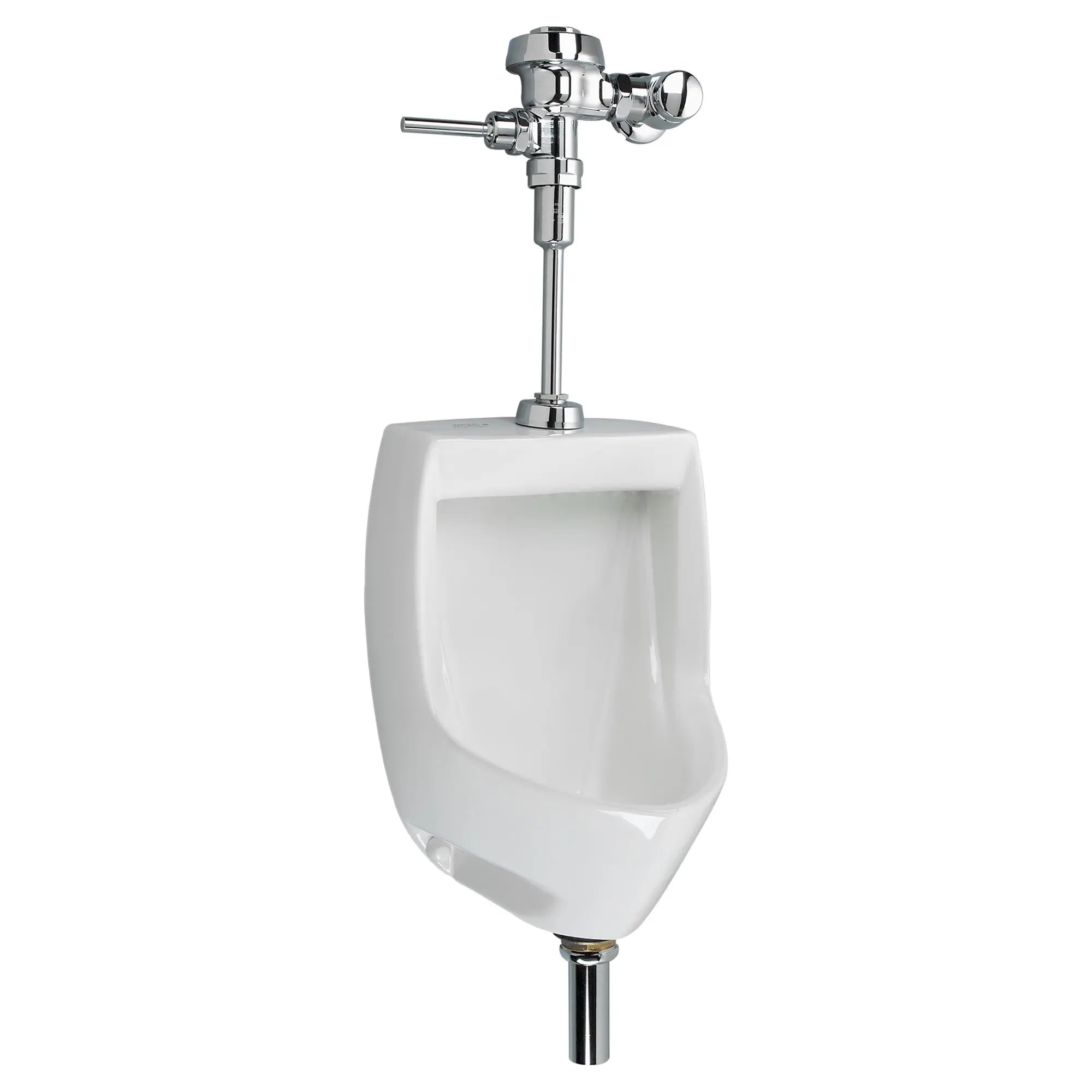

Maybrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal

Model: 6581001.020

Operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
Flushing rim

Finish: WHITE

$235.00

~~List price~~

This item is not available for sale on our website

View full details

High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
Flushing rim
Powerful washdown action
Integral strainer
3/4" (19 mm) inlet spud
Outlet spud with 1-1/2" (38 mm) tubing tailpiece
Wall hanger included
Fixture only

This high-efficiency urinal uses just 0.125 gallons per flush, which is 87% less than a standard 1.0 GPF urinal. Features include a flushing rim and a washout flush action for effectiveness. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.

Resources

Spec Sheet Installation Guide Repair Parts Diagram

Style Specifications

Features

Water Efficient

Technical Specifications

Certifications	Cal Green, CEC Certified, Department of Energy, EPA Watersense, Massachusetts Plumbing Board
GPF Maximum	1.0 gpf
GPF Minimum	0.125 gpf
Rough In Size	6.75 in
Warranty	1 Year Limited Warranty

Other Specs

Warranty	1 Year Limited Warranty
Batteries Included	No
Battery Weight	Not Applicable

Download Spec Sheets CAD Drawings 2D Revit Files

Installation Guide
