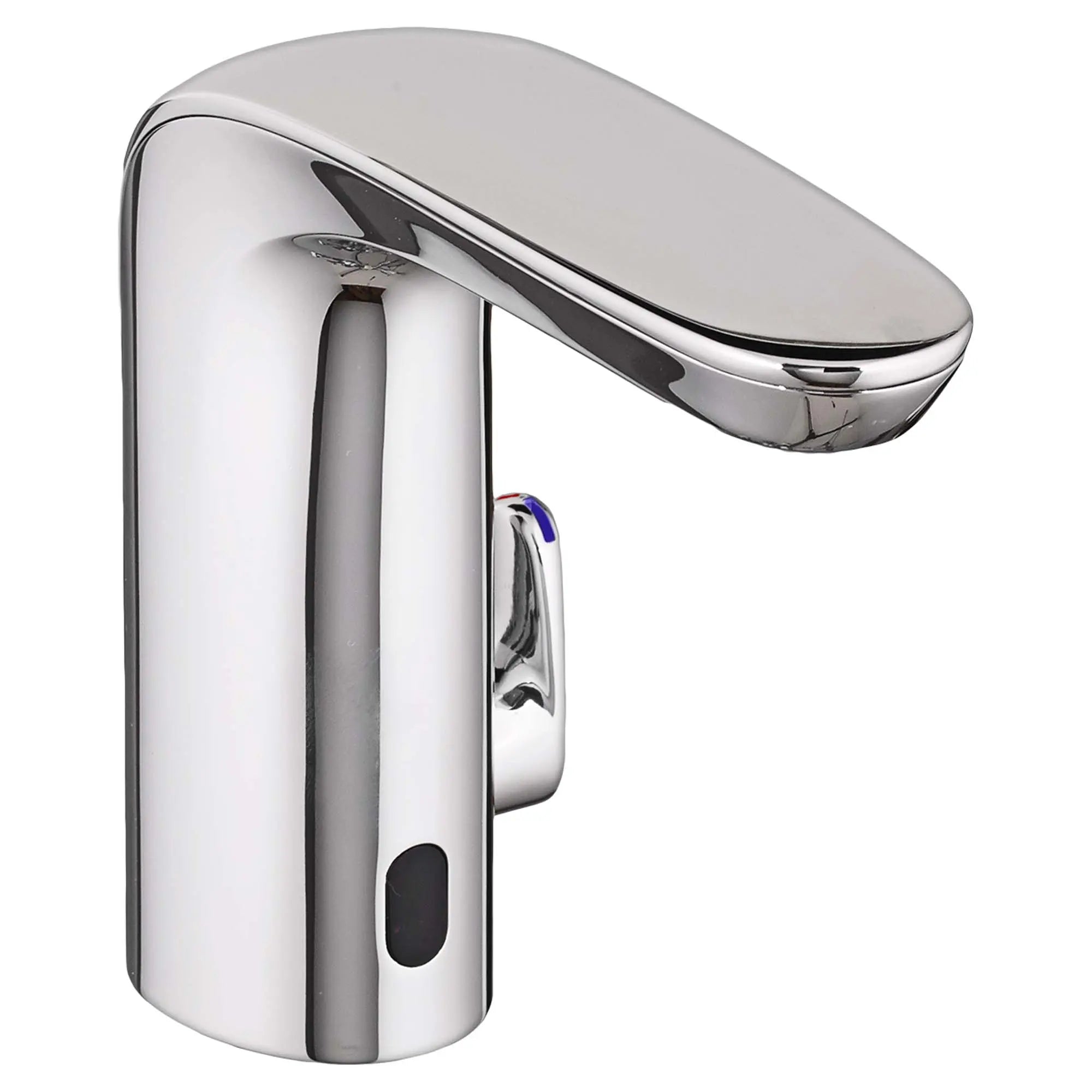

NextGen Selectronic® Touchless Faucet, Base Model With SmarTherm Safet

POWER KIT MUST BE PURCHASED SEPARATELY
Touchless operation limits the spread of germs
SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
Above-deck mixing with removable handle
Dual inlets for hot and cold water
Clean, integrated design. No control box below deck
Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
Auto Purge: Periodically purges stagnant water
Vandal-resistant 0.35 gpm/1.3 Lpm pressure-compensating multi-laminar spray
Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available

The exclusive American Standard SmarTherm™ Safety Shut-Off is an innovative technology that integrates a thermostatic hot water temperature limiter into the sensor faucet. SmarTherm™ is ASSE 1070 certified and automatically protects user from scalding in case of hot water surge or cold water interruption. It eliminates the need for a separate TMV to achieve ASSE 1070 protection. This NextGen Selectronic Commercial Faucet from American Standard also includes an above-deck mixing handle, allowing the user to adjust the water temperature to their liking. This faucet has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box. POWER KITS MUST BE PURCHASED SEPARATELY.

Resource

Spec Sheet Installation Guide

Style Specifications

Features

Touchless, Touchless, Scald Guard, Ceramic Disc Valves, Low Flow, Water Efficient

Technical Specifications

Fitting Connection Size	9.52 mm
Fitting Handle Type	Electronic
Fitting Material	Cast Metal
Fitting Max Deck Thickness	1-1/2 in
Fitting Swivel Degrees	0 °
Flow Rate	0.35 GPM
