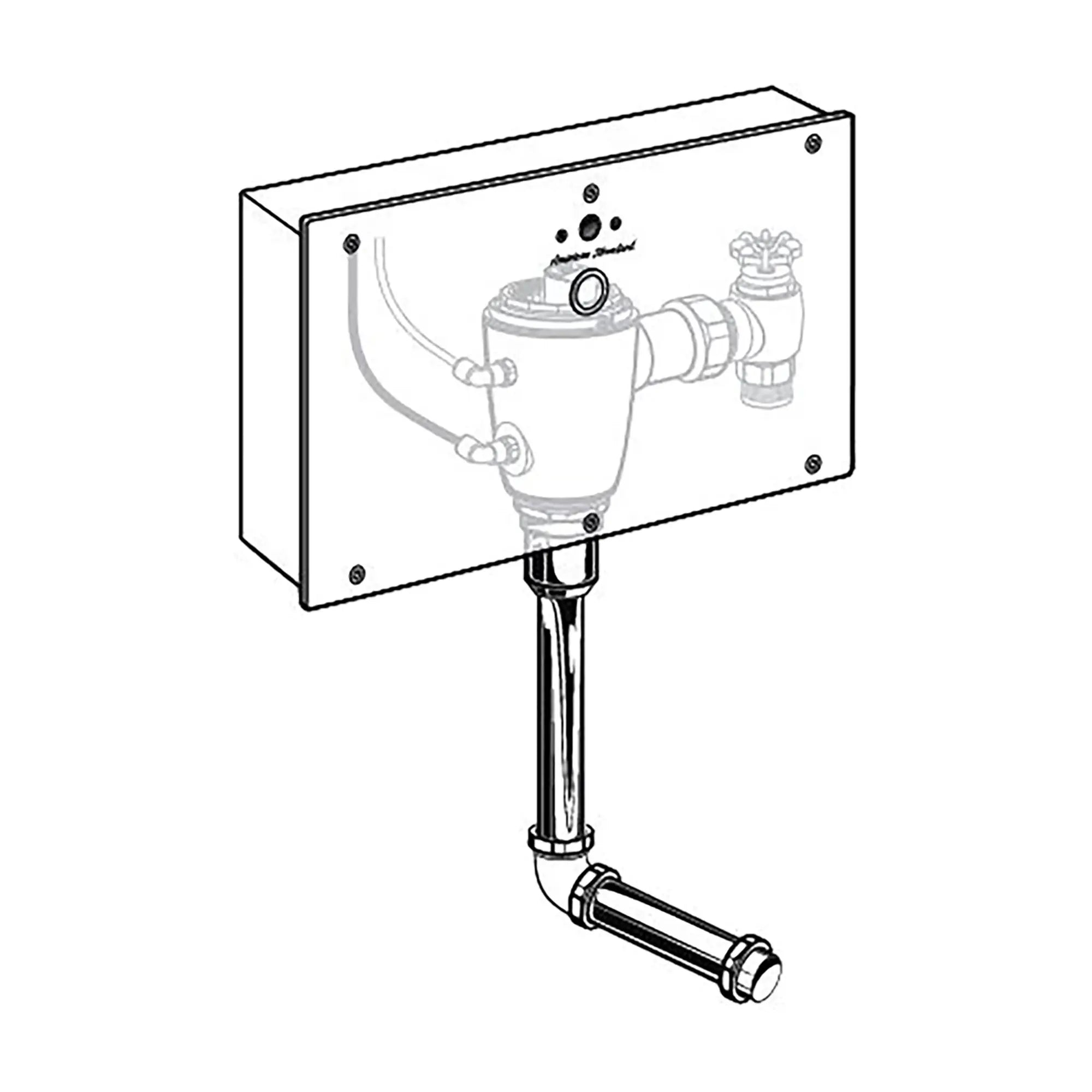

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Model: 606B501.007

Finish: No Finish
Regular price

List price $1,041.00

This item is not available for sale on our website
View full details
  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 0.125 gpf/0.5 Lpf
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure• Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance• Selectronic® Proximity System with universal sensor provides hygienic, "hands free" operation• State-of-the-Art Electronics prevent ghost flushing• Dezincification Resistant semi-red brass alloy• Fully Mechanical Manual Override Button can flush the valve without power• Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset• Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.• Stadium Feature: Valve automatically switches to water savings mode during periods of heavy usage• Chemical Resistant EPDM Seals for extended life• Adjustable tailpiece for rough-in flexibility• Can be installed left or right handed• All exposed parts are chrome-platedSustainability• CALGreen Compliant
Resource
Style Specifications
Features Touchless,Water Efficient
Technical Specifications
Fitting Connection Size 0-3/4 in
Fitting Material Brass
Flow Rate 0.125 GPF
Other Specs
Batteries Included No
Battery Weight Not Applicable

This item requires a product for installation.

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf // NO FINISH // 174648_606B501.007_CDNwebp.webp
Selectronic
Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf
$676.65 List price $1,041.00

Select a product required for installation.

You may only need to select one of the product presented.

Selectronic® Hard Wired AC Power Kit // NO FINISH // 251224_PK01.HAC_CDNwebp.webp
Selectronic® Hard Wired AC Power Kit
No Finish
Model: PK01.HAC
$83.85
Selectronic® CR-P2 Lithium Power Kit // NO FINISH // 173553_PK00CRP-Selectronic-Power-Kit-CR-P2-Lithium-Battery_CDNwebp.webp
Selectronic® CR-P2 Lithium Power Kit
No Finish
Model: PK00.CRP
$27.30
Selectronic® PWRX Power Kit // NO FINISH // 173557_PK00WRK-Selectronic-Power-Kit-PWRX-10-Year-Battery_CDNwebp.webp
Selectronic® PWRX Power Kit
No Finish
Model: PK00.WRK
$102.70
Selectronic® Multi-AC Power Kit // NO FINISH // 251223_PK01.MAC_CDNwebp.webp
Selectronic® Multi-AC Power Kit
No Finish
Model: PK01.MAC
$46.80
