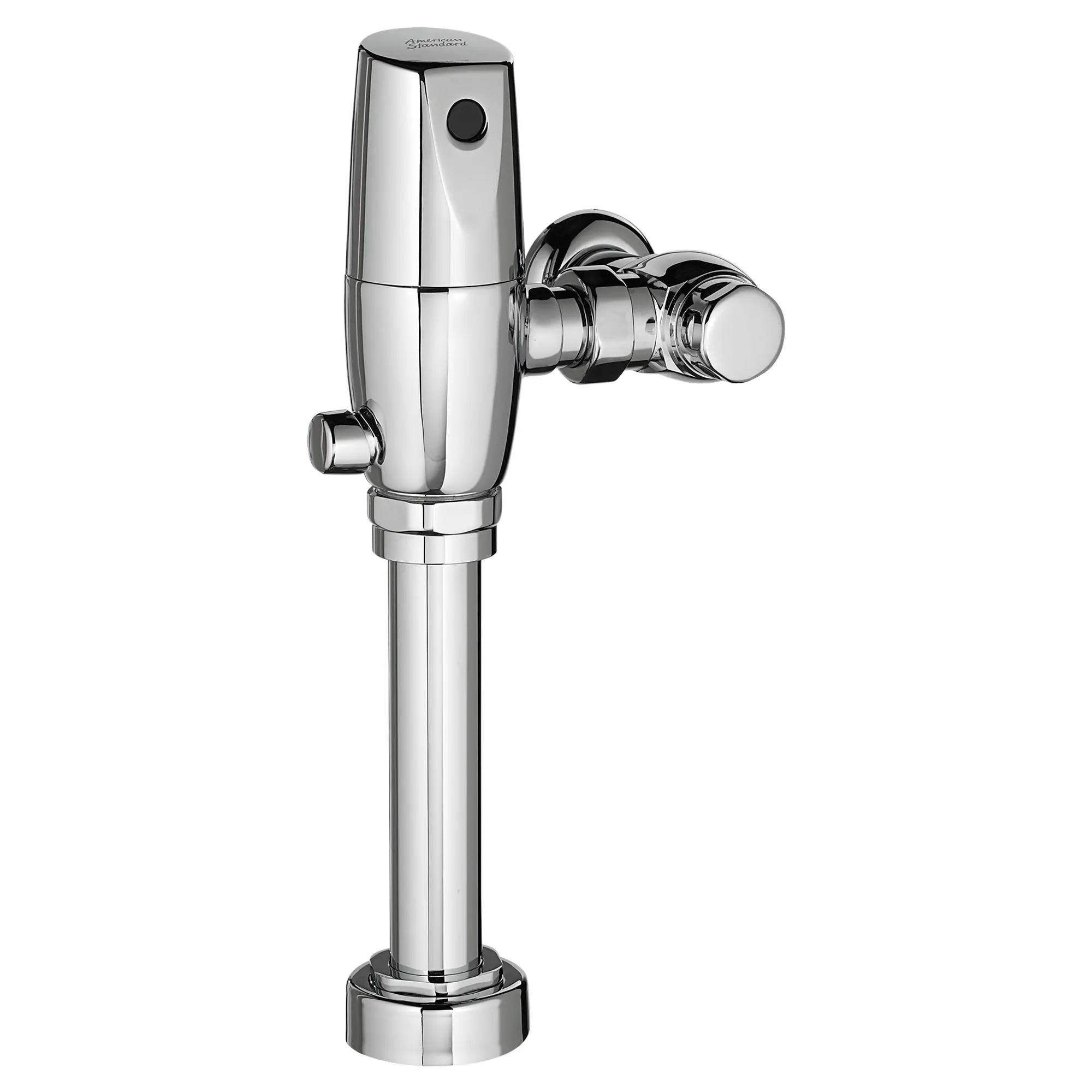

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, Dual Flush 1.6/ 1.1 gpf (6.0/4.2 Lpf) // CHROME // 57562_6065761002_CDNwebp.webp

Compare

Selectronic

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, Dual Flush 1.6/ 1.1 gpf (6.0/4.2 Lpf)

Model: 6065761.002

Shipping

Finish: CHROME

$582.00

~~List price~~

This item is not available for sale on our website

View full details

For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
5-year CR-P2 lithium battery installed in valve
Touchless operation limits the spread of germs
Exclusive DynaClean® self-cleaning wiper spring technology
Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
Fully mechanical manual override can operate without power
Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
Proprietary brass alloy resists dezincification
11-1/2" (292 mm) rough-in

The Exposed Selectronic® Toilet Flush Valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36” height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.Features

Resources

Spec Sheet Installation Guide Repair Parts Diagram

Style Specifications

Features

Touchless, Water Efficient

Technical Specifications

Fitting Connection Size	1 in
Fitting Material	Brass
Flow Rate	1.1 - 1.6 GPF

Other Specs

Warranty	5 Year Limited Warranty
Batteries Included	Yes
Batteries Required	Yes
Battery Lifetime	384000
Chemical Composition of Battery	Lithium Metal Manganese

Download Spec Sheets Revit Files

Installation Guide
