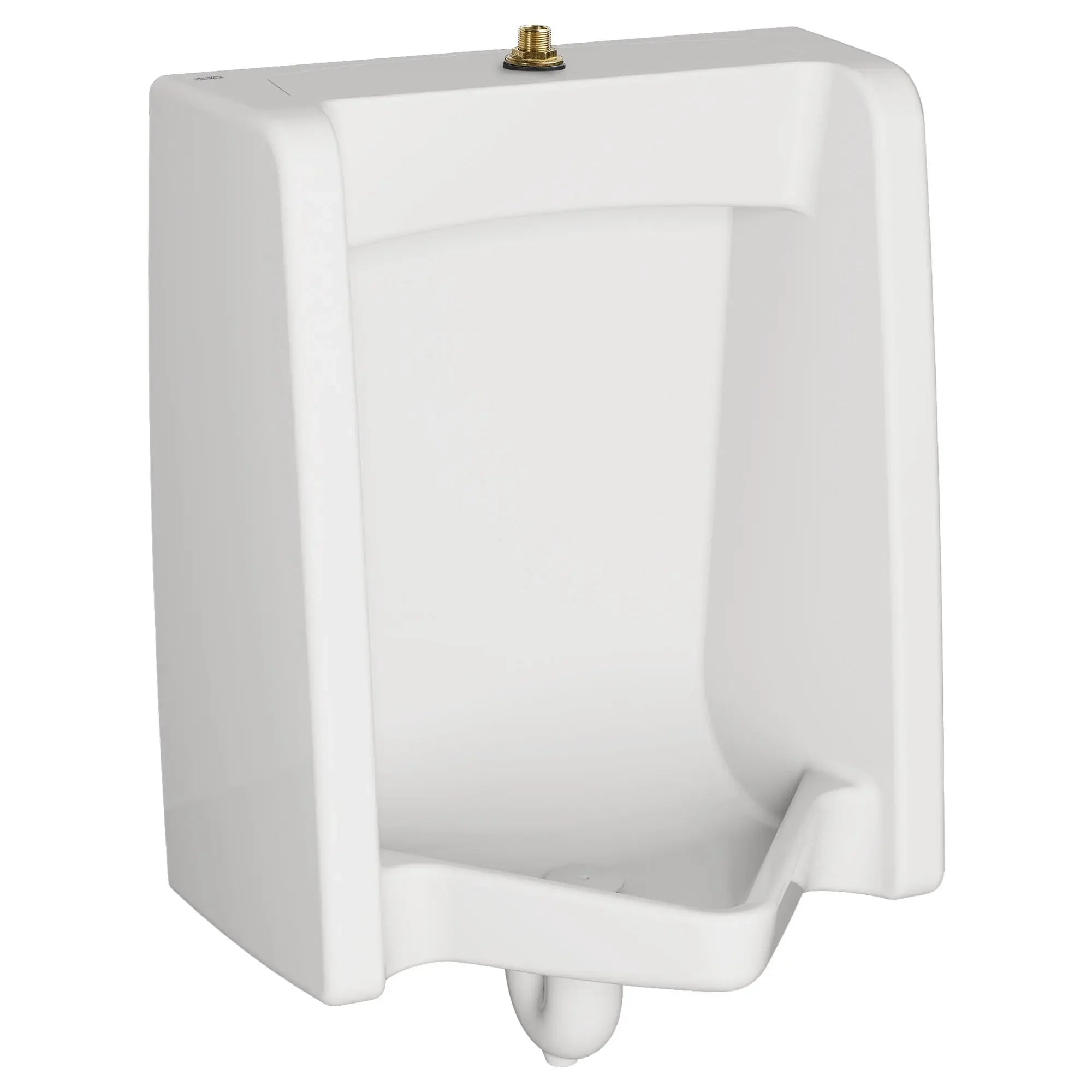

Washbrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal

Model: 6590001.020

Operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
Flushing rim

Shipping

Finish: WHITE

$320.00

~~List price~~

This item is not available for sale on our website

View full details

High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
Flushing rim
Elongated 14" (356 mm) rim from finished wall
Powerful washdown action
Extended sides for privacy
3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
Two wall hangers included
Fixture only
Chrome plated non-metallic strainer included
Vitreous china
Meets ANSI flush requirements at 0.125 to 1.0 GPF
Sustainability CEC Listed. CALGreen Compliant

This ultra-high-efficiency, low-consumption universal urinal operates in the range of 0.125 GPF – 1.0 GPF. Choose a manual- or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.

Resources

Spec Sheet Installation Guide

Style Specifications

Features

Water Efficient

Technical Specifications

Certifications	ADA, Barrier Free, Cal Green, CEC Certified, Department of Energy, EPA Watersense, Massachusetts Plumbing Board
GPF Maximum	1 gpf
GPF Minimum	0.125 gpf
Warranty	1 Year Limited Warranty

Other Specs

Warranty	1 Year Limited Warranty
Batteries Included	Yes
Batteries Required	Yes
Battery Weight	Not Applicable

Download Spec Sheets

Installation Guide
